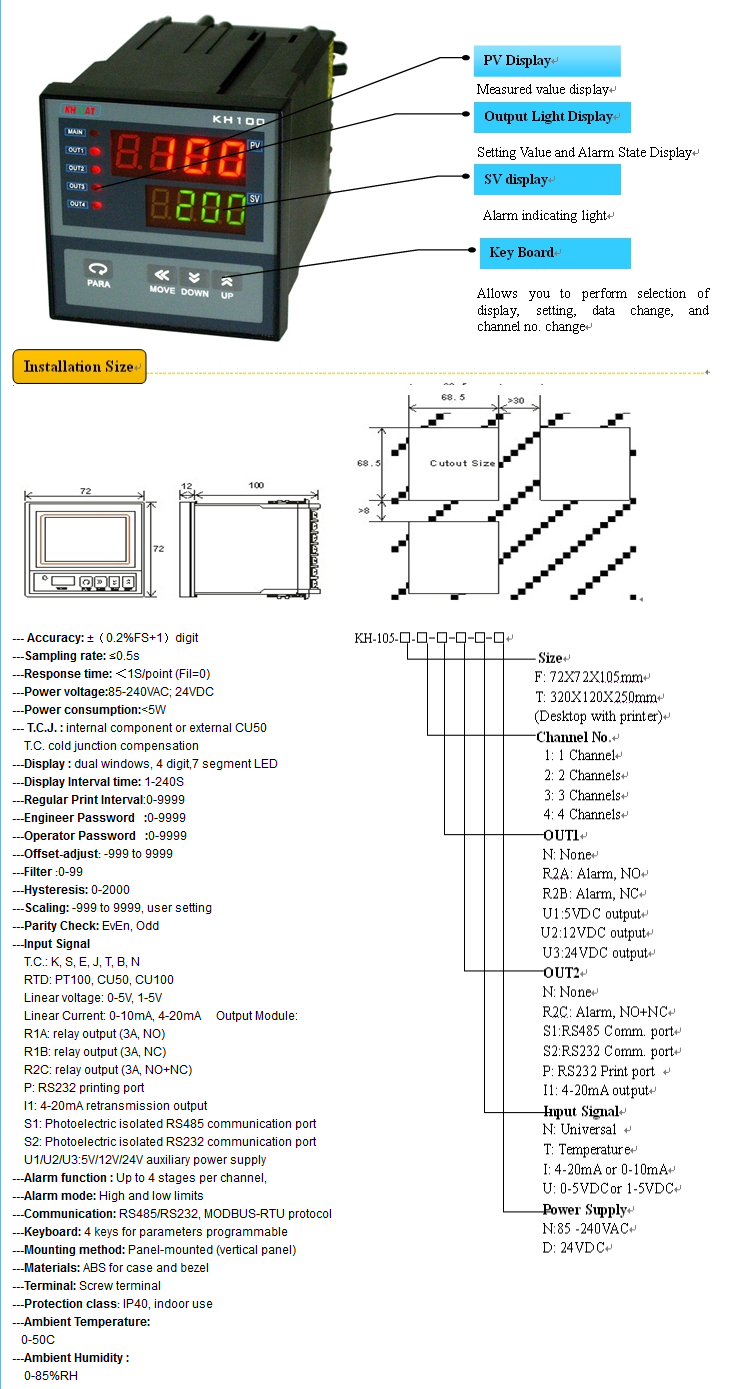

KH105-F Economic Multi Channel Indicator
KH105D is low cost multi channel process indicator (π160X80X105mm, up to 48 channels), used the advance>d technology, to be designed high quality&nΩbsp;and performance, high accuracy, single or universa↑l input use, to be aimed to monitor, display, analysis• the processes in various industry application.
Petroleum, Chemical, Pharmaceutical, Metallurgy, Paper, Electricity, Nuclear power, Food,' Cement, Building, aviation, Medical University lab, Marine, Se€wage treatment etc various application.
1.High accuracy: +-(0.2%FS+1) digit
2.Size:72x72x105mm, 320x120x250mm
3.Dual windows, 4 digit, 7 segment LED display
4.SMT technology, modular structure, easy and flexible to configuration
5.Multi-points measurement and display, with multi-meters functions as a unit.
6.Multi-protection, strong anti-interference, high ability.
7.Single/Universal input signal: T.C. RTD, mA DC, mV D&C….etc
8.Up to 4-points measurement and display ( option)
9.Up to 2 points relay alarm output(option)
10.Alarm can be set and configurable flexible
11.Automatic and manual regular inspection can be ↓shifted flexibly
12.Inspecting time and channel parameter can be set flexibly.
13.Could select 5VDC, 12VDC, 24VDC auxiliary power supply fo¥r sensor
14.Could select RS232 port, directly connecting mini printer for data printing.
15.The user can access the data on the screen as well as on site from a remote place∏ via RS485, RS232 serial interface. 16.MODBUS-RTU communication protocol ar<e available for configuration with MCGS and others professional software.
2.Size:72x72x105mm, 320x120x250mm
3.Dual windows, 4 digit, 7 segment LED display
4.SMT technology, modular structure, easy and flexible to configuration
5.Multi-points measurement and display, with multi-meters functions as a unit.
6.Multi-protection, strong anti-interference, high ability.
7.Single/Universal input signal: T.C. RTD, mA DC, mV D&C….etc
8.Up to 4-points measurement and display ( option)
9.Up to 2 points relay alarm output(option)
10.Alarm can be set and configurable flexible
11.Automatic and manual regular inspection can be ↓shifted flexibly
12.Inspecting time and channel parameter can be set flexibly.
13.Could select 5VDC, 12VDC, 24VDC auxiliary power supply fo¥r sensor
14.Could select RS232 port, directly connecting mini printer for data printing.
15.The user can access the data on the screen as well as on site from a remote place∏ via RS485, RS232 serial interface. 16.MODBUS-RTU communication protocol ar<e available for configuration with MCGS and others professional software.
