KH400 Color Paperless Recorder
View times：
Author：admin
Published time：2018-03-01
|
|
KH400 Color Paperless Recorder |

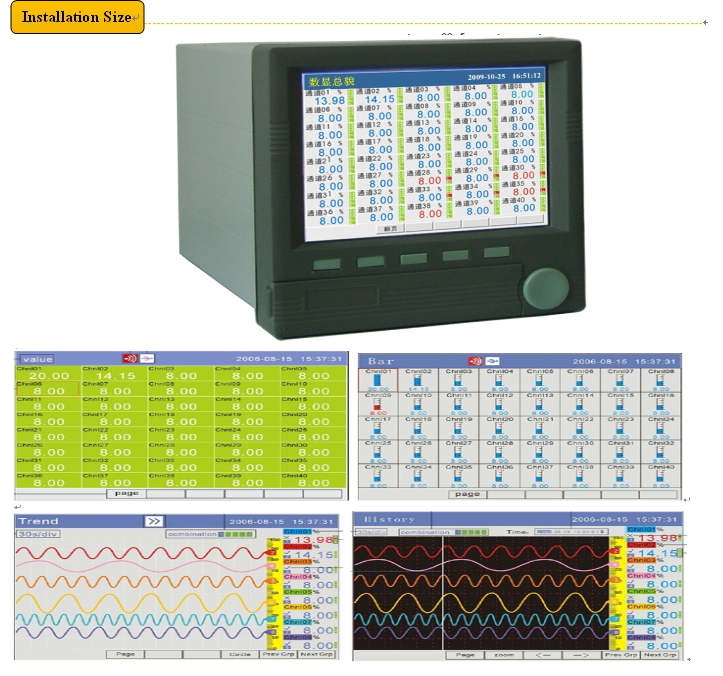

KH400 color paperless recorder (288X288X280mm, up to 40 channels) is color TFT LCD display; completely isolated universal inp$ut such as thermocouple, thermal resistance, current and voltage, adopts modular stru∞cture output functions such as alarm, auxiliary power supply for s™ensors output, retransmission, print and communication etc. Measuring data can be displayed in vφarious types, such as graphic display as bar-graph, real-tim↕e trending, history trending memory, and alarming state display. a≈lso can be printed in curve and data by mini printer through RS232 port ; The recorder uses &LINUX operating system with password protection. 64M memory capacity built in, can be increased if need. In addition to RS232/×485 communication based on MODBUS-RTU and USB memory for download data, the recorder also ca£n be connected with ENTHERNET at 10M rate to support the PC to configuration in long-distance and managing data; and can also monitor γand control in long distance by MODEM telephone or wireless datΩa transmitting ways.

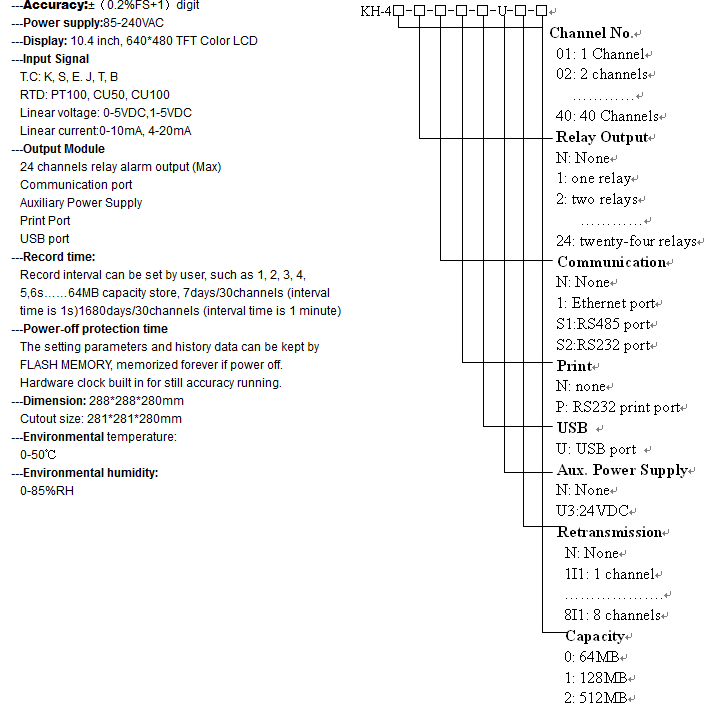

E.g. Order Code: KH440B-D-24-S1-U3-S1-N, model: KH200B-D, 160X80x105mm, 16 Channels, 8relay alarm output, USB port, RS485 communication por&t,24VDC aux. output, 220VAC power supply
